Or when it’s a wall, like the door below. This door is in a dance studio in a converted mill building. I guess I’ve been so focused on my favorite instructor (Hi Ali!) that it took me a while to notice it, but as you can see, the door has been permanently closed, and there’s a perpendicular wall that leaves most of the door in the waiting room and the rest in the studio. Add a fancy paint job, a light fixture, and some Great Stuff (insulating foam) and voila! A wall!
Jul 27 2010
A few weeks ago I wrote a post about spending time in a maternity ward, which was a completely locked unit requiring remote release from the nurses’ station to exit. Although the 2009 edition of NFPA 101 allows egress doors in certain health care occupancies to be locked, the requirements of the International Building Code are not as clear.
The 2009 edition of the IBC contains some confusing language in section 1008.1.9.6, “Special Locking Arrangements in Group I-2.” Group I-2 typically applies to hospitals, nursing homes, detoxification facilities, and mental hospitals. This section describes the requirements for locking these facilities when the clinical needs of the patients require such locking. Prior to the 2009 edition of the IBC, the most secure locking typically allowed was a delayed egress lock. Although these locks would prevent someone from exiting for 15 seconds, or 30 seconds if allowed by the AHJ, they were not appropriate for many types of facilities where the patients would constantly initiate the alarm cycle or where greater security was required.
The new section in the 2009 IBC describes locks which unlock upon actuation of the fire alarm / sprinkler system / power failure, are capable of being unlocked remotely, and can be unlocked by clinical staff at all times. Unfortunately, this section uses the term “delayed egress lock” even though it is not describing the product known in the hardware industry as a delayed egress lock. There is no requirement for a 15-second delay initiating unlocking, special signage, or a local alarm.
A change proposal (#G65) in the current code change cycle for the IBC contains revised language for this section, which was approved and will be included in the 2012 IBC. Since this is more like a clarification rather than an actual change, it helps to explain the intent of this section even though the 2012 edition may not be adopted in a project’s jurisdiction for several years.
In my opinion, this revised language allows the use of electromagnetic locks or fail safe double-cylinder electrified mortise locks that meet all of the criteria listed below. It does not require delayed egress hardware, or the motion sensor and push button typically required when electromagnetic locks are used. Free egress is not required until actuation of the fire alarm, power failure, or remote release. The staff must be trained and ready to unlock the doors as needed, the building must be protected throughout with a sprinkler / fire detection system, and emergency lighting must be provided at the door. The doors are not required to unlock upon fire alarm or power failure for certain psychiatric treatment facilities. Refer to the actual code section below for details.
Here is the revised language planned for the 2012 edition of the IBC:
1008.1.9.6 Special locking arrangements in Group I-2. Approved special egress locks shall be permitted in a Group I-2 occupancy where the clinical needs of persons receiving care require such locking. Special egress locks shall be permitted in such occupancies where the building is equipped throughout with an automatic sprinkler system in accordance with Section 903.3.1.1 or an approved automatic smoke or heat detection system installed in accordance with Section 907, provided that the doors are installed and operated in accordance with Items 1 through 7 below.
1. The doors unlock upon actuation of the automatic sprinkler system or automatic fire detection system.
2. The doors unlock upon loss of power controlling the lock or lock mechanism.
3. The door locks shall have the capability of being unlocked by a signal from the fire command center, a nursing station or other approved location.
4. A building occupant shall not be required to pass through more than one door equipped with a special egress lock before entering an exit.
5. The procedures for the operation(s) of the unlocking system shall be described and approved as part of the emergency planning and preparedness required by Chapter 4 of the International Fire Code.
6. All clinical staff shall have the keys, codes or other means necessary to operate the locking devices.
7. Emergency lighting shall be provided at the door.
Exception: Items 1 through 4 shall not apply to doors to areas where persons which because of clinical needs require restraint or containment as part of the function of psychiatric treatment areas.
The 2009 edition of NFPA 101 contains similar language in the health care chapters:
18.2.2.2.5.1* Door-locking arrangements shall be permitted where the clinical needs of patients require specialized security measures or where patients pose a security threat, provided that one of the following criteria is met:
(1) Staff can readily unlock doors at all times in accordance with 18.2.2.2.6.
(2) The provisions of 18.2.2.2.5.2 are met.
18.2.2.2.5.2 Door-locking arrangements shall be permitted where patient special needs require specialized protective measures for their safety, provided that all of the following criteria are met:
(1) Staff can readily unlock doors at all times in accordance with 18.2.2.2.6.
(2) A total (complete) smoke detection system is provided throughout the locked space in accordance with 9.6.2.9, or locked doors can be remotely unlocked at an approved, constantly attended location within the locked space.
(3)*The building is protected throughout by an approved, supervised automatic sprinkler system in accordance with 18.3.5.1.
(4) The locks are electrical locks that fail safely so as to release upon loss of power to the device.
(5) The locks release by independent activation of each of the following:
..(a) Activation of the smoke detection system required by 18.2.2.2.5.2(2)
..(b) Waterflow in the automatic sprinkler system required by 18.2.2.2.5.2(3)
18.2.2.2.6 Doors that are located in the means of egress and are permitted to be locked under other provisions of 18.2.2.2.5 shall comply with the following:
(1) Provisions shall be made for the rapid removal of occupants by means of one of the following:
…(a) Remote control of locks
…(b) Keying of all locks to keys carried by staff at all times
…(c) Other such reliable means available to the staff at all times
(2) Only one locking device shall be permitted on each door.
From Annex A of NFPA 101 2009:
A.18.2.2.2.5.1 Psychiatric units, Alzheimer units, and dementia units are examples of areas with patients who might have clinical needs that justify door locking. Forensic units and detention units are examples of areas with patients who might pose a security threat. Where Alzheimer or dementia patients in nursing homes are not housed in specialized units, the provisions of 18.2.2.2.5.1 should not apply. (See 18.2.2.2.5.2.)
A.18.2.2.2.5.2 Pediatric units, maternity units, Alzheimer units, dementia units, and emergency departments are examples of areas where patients might have special needs that justify door locking.
Jul 25 2010
I spend a lot of time with architects, and sometimes I’m put in the awkward position of having to talk them out of trying to do something with doors that hasn’t been successfully done before. Many times this involves glass doors, which are becoming more common, yet still have very few options for hardware. It’s tough to make a glass door do anything innovative, when all of the locking hardware is paired with a fixed pull handle.
Today I saw a couple of glass door applications at Regis College. The application on the entrance doors happens to be something I was just talking about with an architect earlier this week. The architect was trying to decide which pull handle to use – vertical, horizontal, or L-shaped. My advice was that when you use anything other than a vertical pull, people get confused about whether to push or pull. Most people will automatically push on a horizontal bar, even though it’s on the outside of an outswinging door.

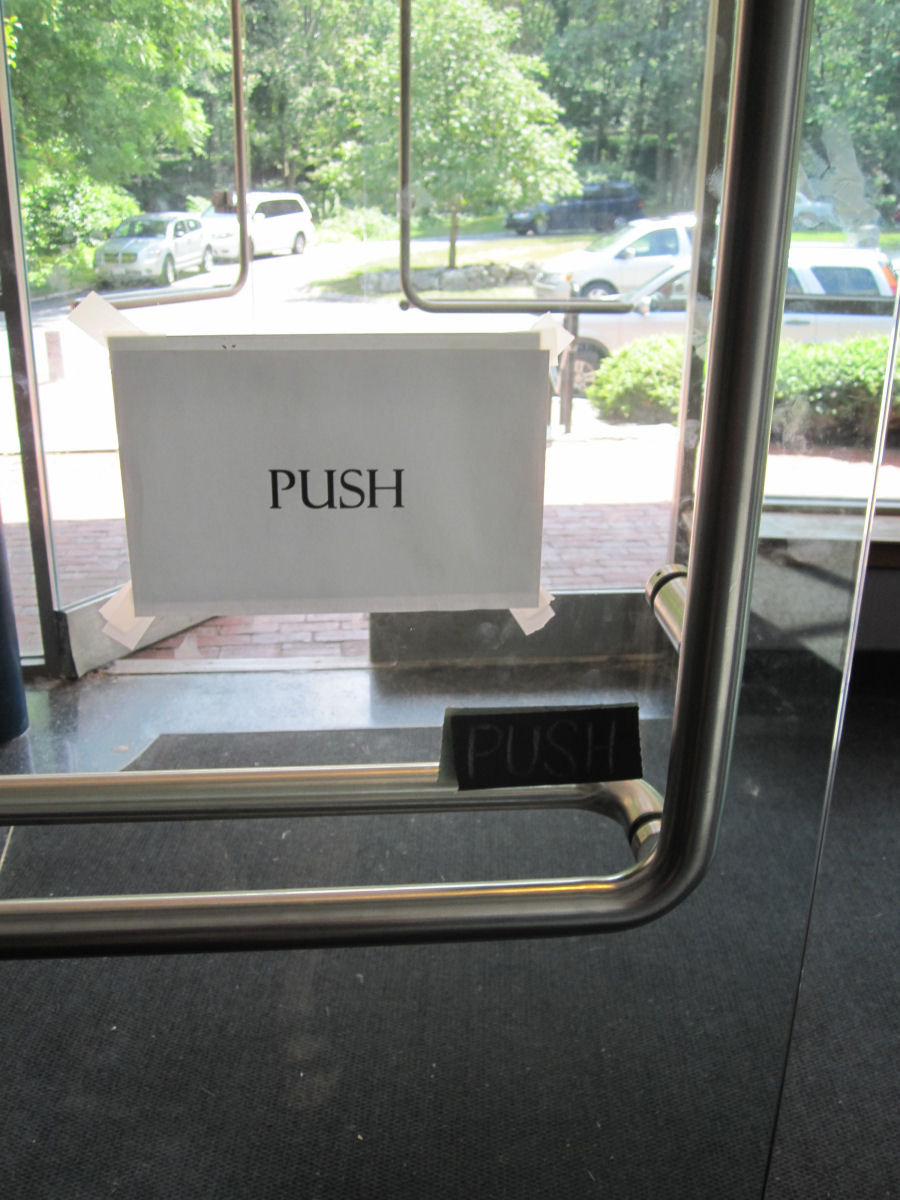

These photos support that theory. They’re also evidence of something I’ve been telling architects for years…the facilities department or building occupants will do what they have to do to “fix” what the architect designs, if it doesn’t make sense from a functional standpoint. No kick plates? No problem! We’ve got some kick plates in the storeroom we can install! Confusing glass doors?! Just add some signage! The duct-tape signage isn’t visible enough? We’ll just print out some bigger ones!

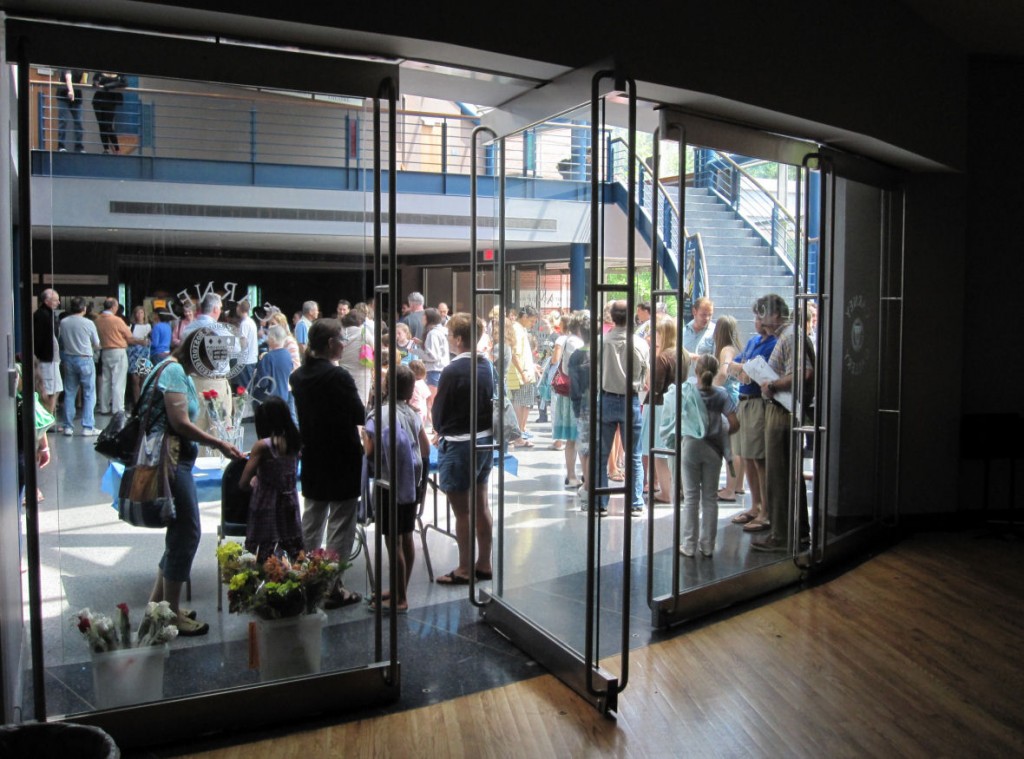

The second application is actually pretty cool. It’s a curved bank of glass doors hung on center pivots that are centered in the door width. The doors can be pivoted 90 degrees to allow free passage into the space. They swing freely and are very easy to move. The only problem is that there’s nothing to hold them in the open position. In fact, they can swing 360 degrees so the etched logos are backward from the outside. Because they swing so freely, I’m sure that when they’re open they’re constantly in varying positions – probably not what the architect had in mind. What I typically do for this application is to specify floor strikes for the locking hardware to engage in the open position as well as the closed/locked position.
BTW…if you’re searching for Blumcraft glass door hardware, the product line is now owned by CR Laurence (here’s the press release).
Jul 23 2010
The 8th edition of the Massachusetts State Building Code 780 CMR becomes effective on August 6, 2010. There will be a concurrency period during which the 7th or 8th edition requirements can be followed, but the length of the concurrency period has not yet been announced (in the past it has been 6 months).
The 8th edition is based on the 2009 edition of the International Building Code. I pointed out a few of the hardware-related requirements that are specific to Massachusetts in an earlier post, and I’ll do a complete run-through when the final Massachusetts amendments become available.
If you’d like more information, here’s a link to the BBRS announcement, and a link to the State Bookstore (currently showing the 7th edition available, but not the 8th).
